Locking Roller Bridge

Low-friction grooved saddles roll freely with a tremolo so your strings always return to pitch. Adjustable for precise intonation.

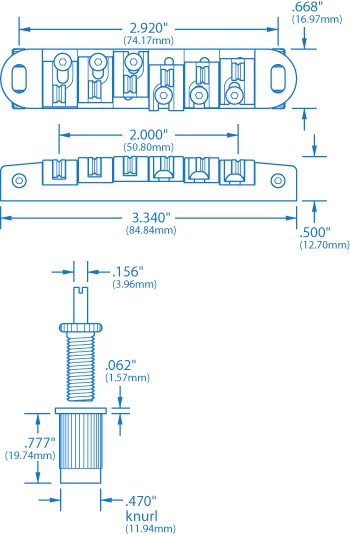

String spread		Saddle radius		Post spacing		Post threads
2″		14″		2-29/32″		M8 x 1.25

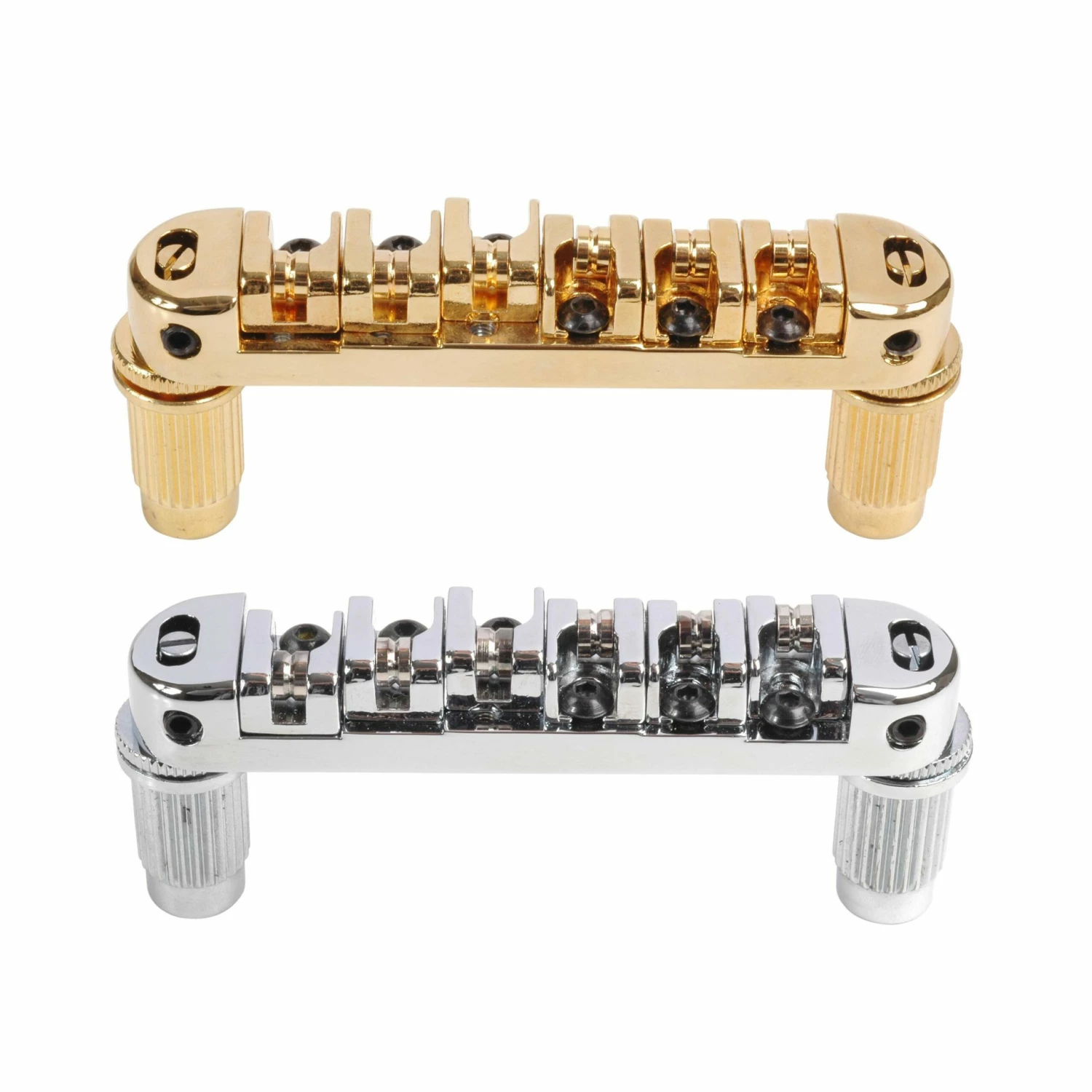

This unique post-mounted brass bridge has low-friction grooved roller saddles for smooth string return, plus advanced features for improved intonation stability. The holes for the bridge posts are elongated to allow overall intonation adjustment, and allen screws lock the bridge to the posts. The reversible roller saddles are individually adjustable for precise string intonation, and also lock to the bridge with allen screws. Allen wrench and thumbwheel mounting posts with bushings are included.

Use an 11mm drill bit to install the bushings.

SAVE when you buy a roller bridge paired with a Bigsby Vibrato Tailpiece:
With Bigsby B50: Locking Roller Bridge with Bigsby B50 Vibrato
With Bigsby B70: Locking Roller Bridge with Bigsby B70 Vibrato

Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.
