StewMac Lipstick Pickups

Get a completely new sound without modifying your guitar! These pickups are full of unique character and chime, and fits standard Strat-style single-coil and humbucker routs, pickguards, and mounting rings.

Unique design, powerful tone
Lipstick pickups feature poly-coated coil wire wound on Alnico 5 bar magnets, encased in iconic chrome-plated metal tubes. This fully shielded design produces the clean, classic jangly sound, and full-throated overdriven tone that’s completely different from traditional pickup design. They sound amazing for slide playing too.

The Alnico 5 magnets produces a clear tone with more pronounced highs and a tighter low end. It’s the ideal combination for shimmering clean tones and bold overdriven sounds. The humbucker is high output to push your amp hard, the single-coil is lower output for ultra-clean tones. The humbucker has four-conductor wiring for spitting, phase reversal, and series and parallel options.

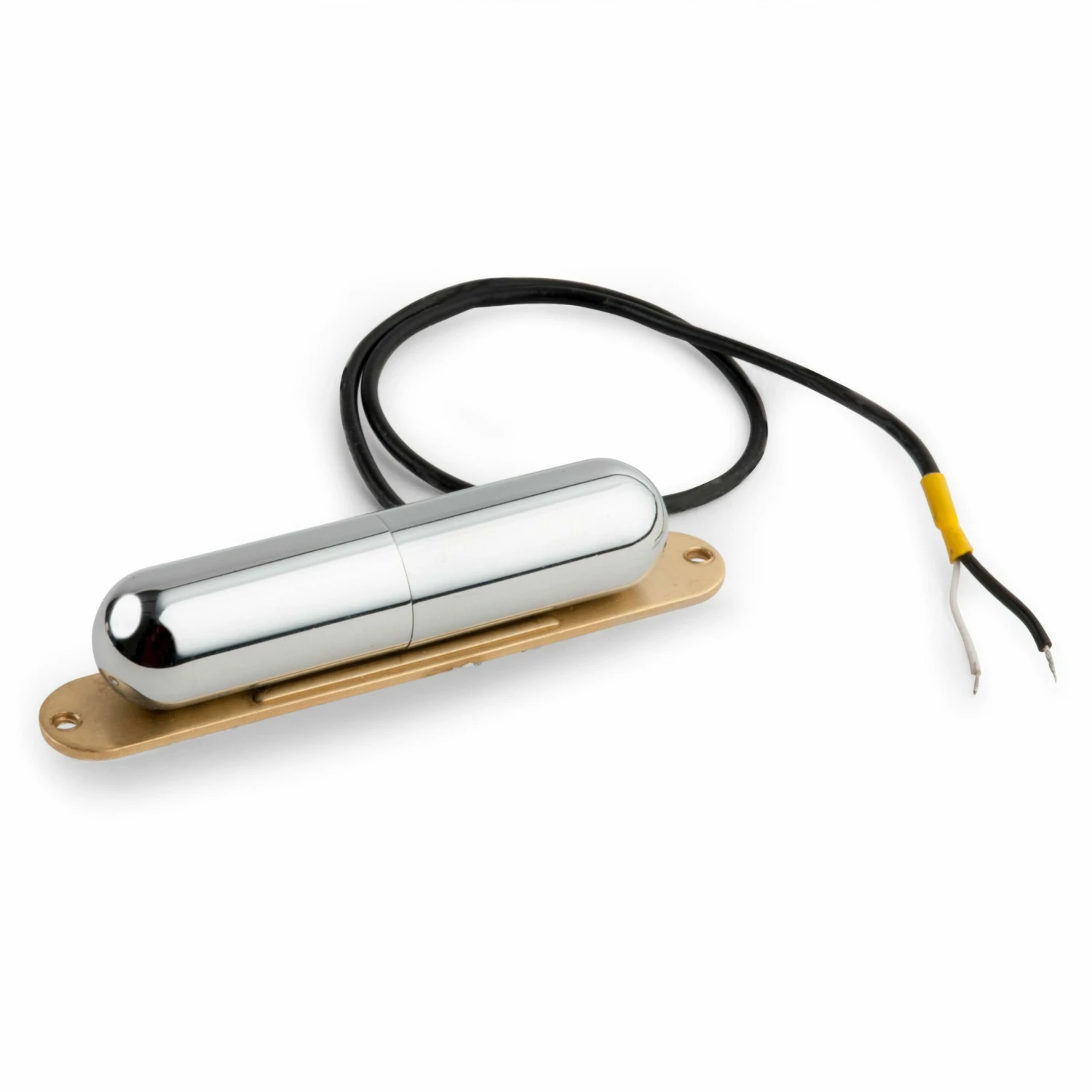

Single-coil specifications

• Low output single-coil pickup
• Accommodates any string spacing up to 2.187″ (55.5mm)
• Poly-coated 42 AWG coil wire
• Potted to suppress noise
• Alnico 5 magnet, south polarity
• Insulated lead wires

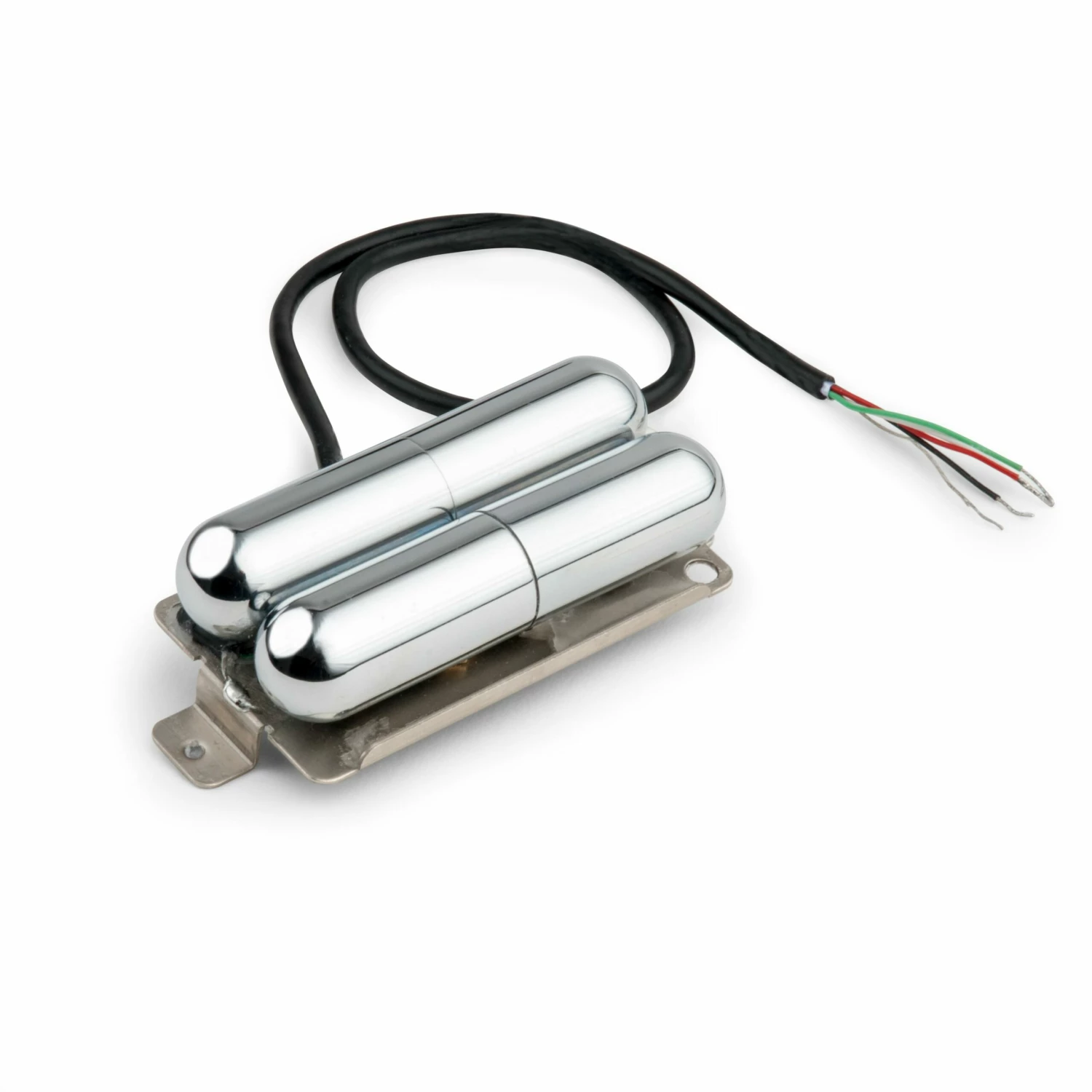

Humbucker specifications

• High output humbucker pickup
• Accommodates any string spacing up to 2.187″ (55.5mm)
• Poly-coated 43 AWG coil wire
• Potted to suppress noise
• Alnico 5 magnet
• Four-conductor insulated lead wires

Output

• Single-coil: 3.8K ohm range
• Humbucker: 12K ohm range

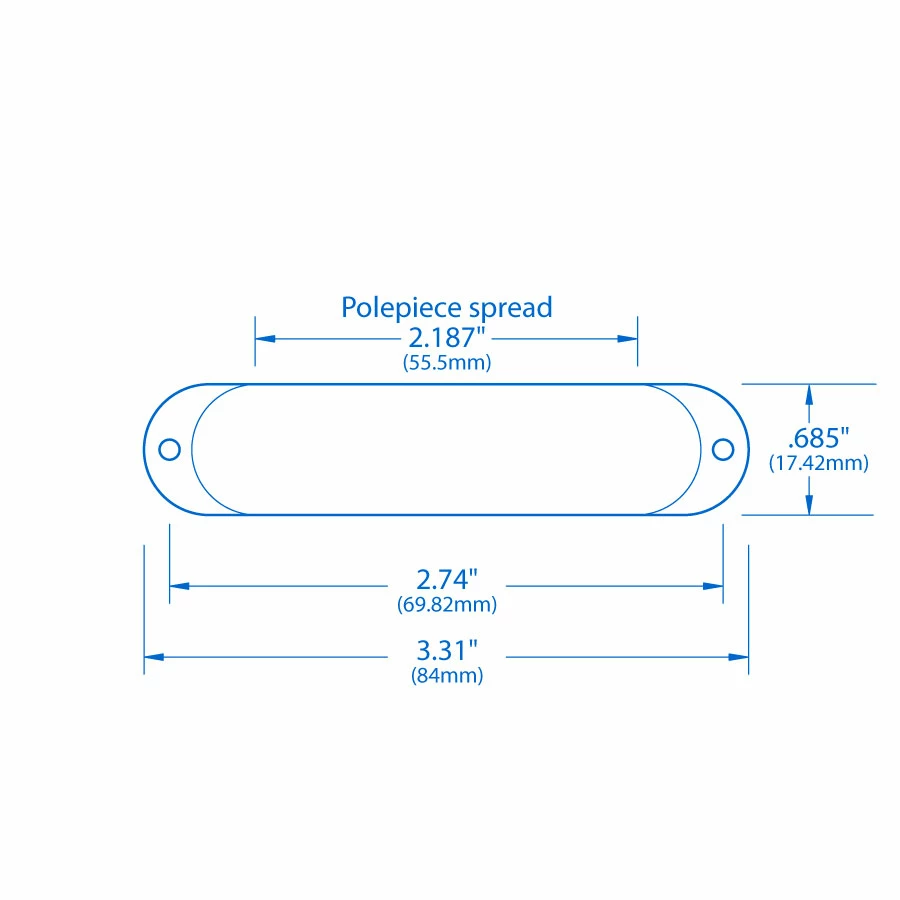

Single-coil dimensions

• Length including mounting tabs: 3.31″ (84mm)
• Mounting screw spacing: 2.74″ (69.82mm)
• Width: 0.685″ (17.42mm)

Humbucker dimensions

• Length including mounting tabs: 3.307″ (84mm)
• Length not including mounting tabs: 2.750″ (70mm)
• Mounting screw spacing: 3.007″ (76.4mm)
• Width: 1.41″ (36mm)
• Height: 1.130″ (28.7mm) including mounting tabs

Mounting screws, springs, and wiring diagrams are included.

Please note: won’t fit original Danelectro® guitars.

Stratocaster®, Strat®, and Squier® are registered trademarks of Fender Musical Instruments Corporation.
