Switchcraft Shorting Jack – StewMac

Switchcraft Shorting Jack

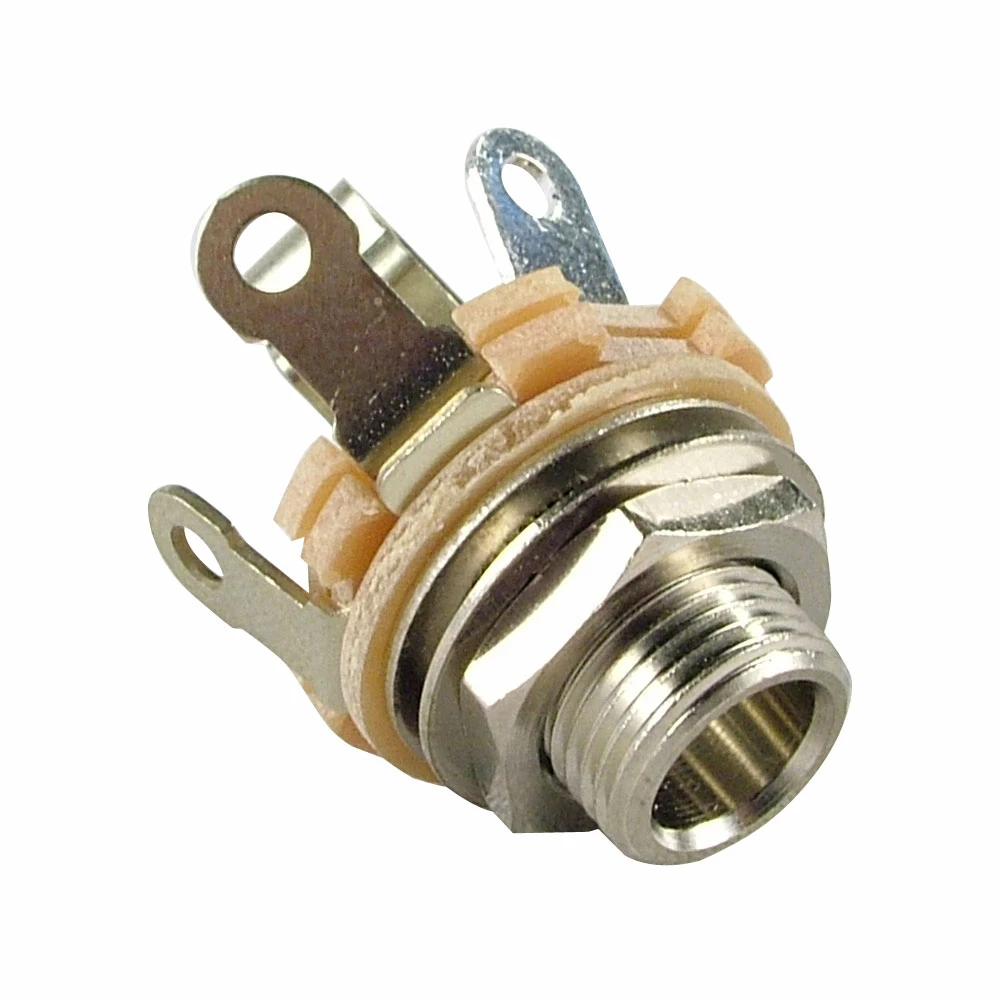

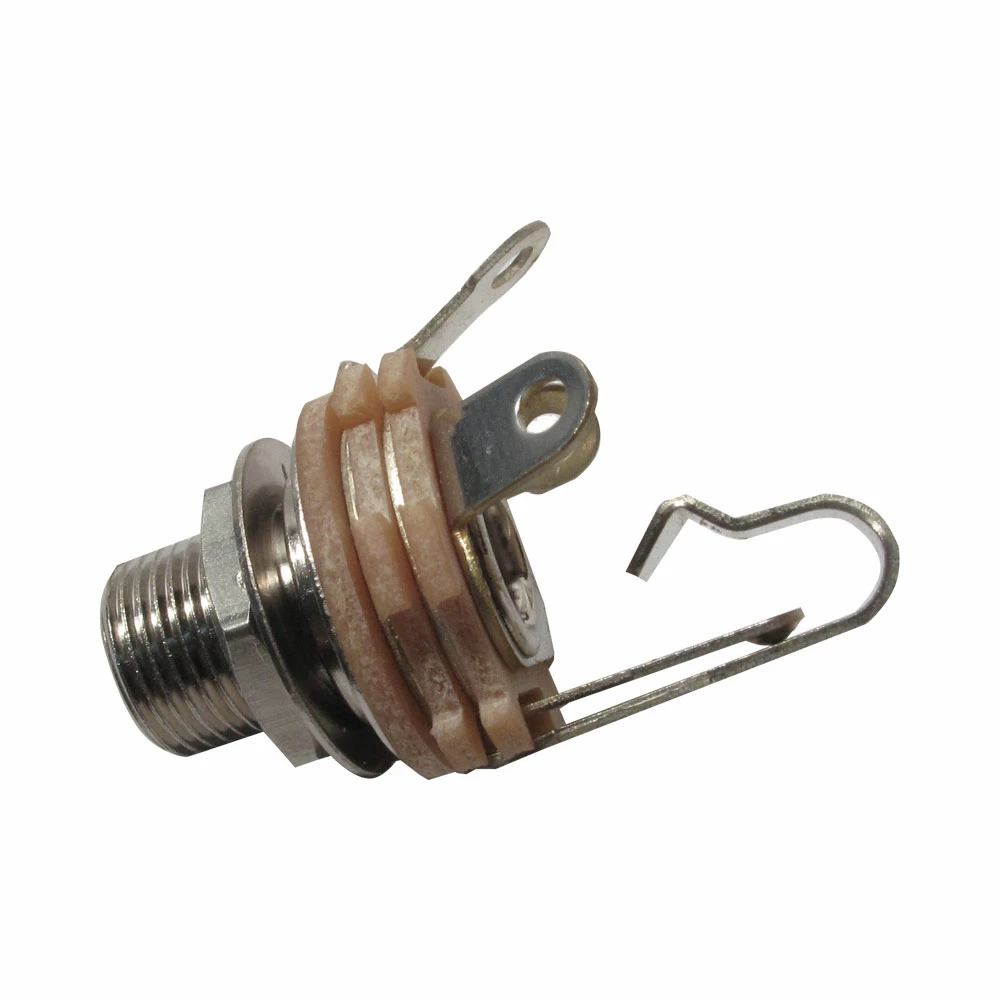

Switchcraft Type 12A Littel-Jax shorting type phone jack. The switched terminal is normally closed and is usually connected to ground to eliminate hum when unplugged. Includes nut and washer

• Type 12A
• 0.275″ bushing length.
• Mates with standard ¼” plugs and is available with 0.25″ inside diameter bushing.
• Mono 2-Conductor.
• Includes nut and washer
• Tip is shunt

Switchcraft Type L12A Littel-Jax shorting type phone jack. The switched terminal is normally closed and is usually connected to ground to eliminate hum when unplugged. Includes nut and washer

• Long Bushing (Type L12A) 0.375”
• Mates with standard ¼” plugs and is available with 0.25″ inside diameter bushing.
• Mono 2-Conductor.
• Includes nut and washer
• Tip is shunt
